Description
Rotary Sand Screening Machine: Manual and Motor-Powered, 20 m/min Capacity
| Capacity |
20 m/min
|
| Motor Power |
1kW – 3kW
|
| Body Material |
Mild Steel
|
| Size |
8′ x 4′
|
| Finish |
Paint Coated
|
| Usage/Application |
Sand Screening
|
| Brand |
” Tiger”
|
| Voltage |
380 V
|
| Material |
Mild Steel
|
| Product Type |
Screening Machinery
|
| Country of Origin |
Made in India
|
| Availability |
In Stock
|
✅ Rotary Sand Screening Machine – Description

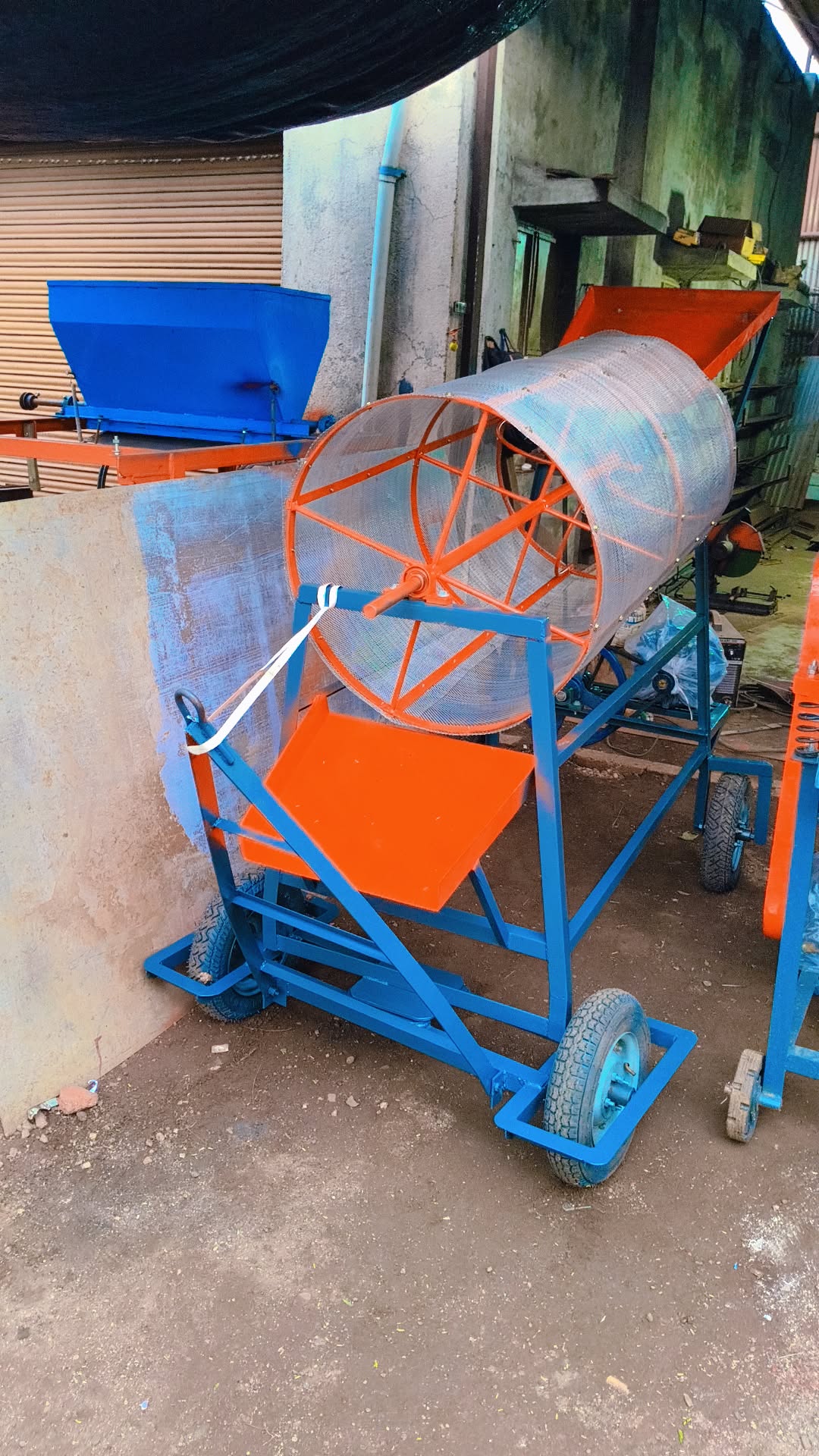

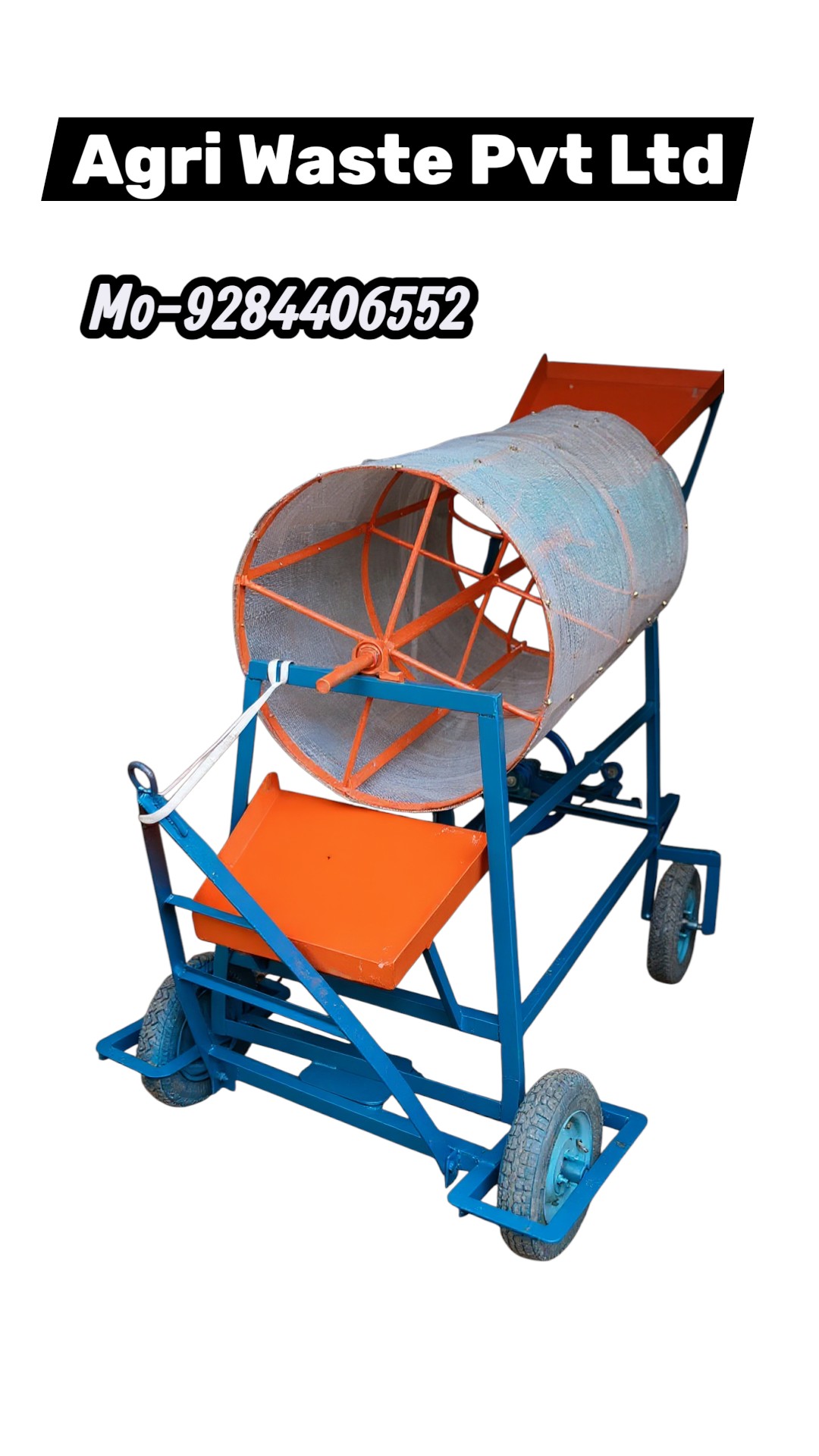

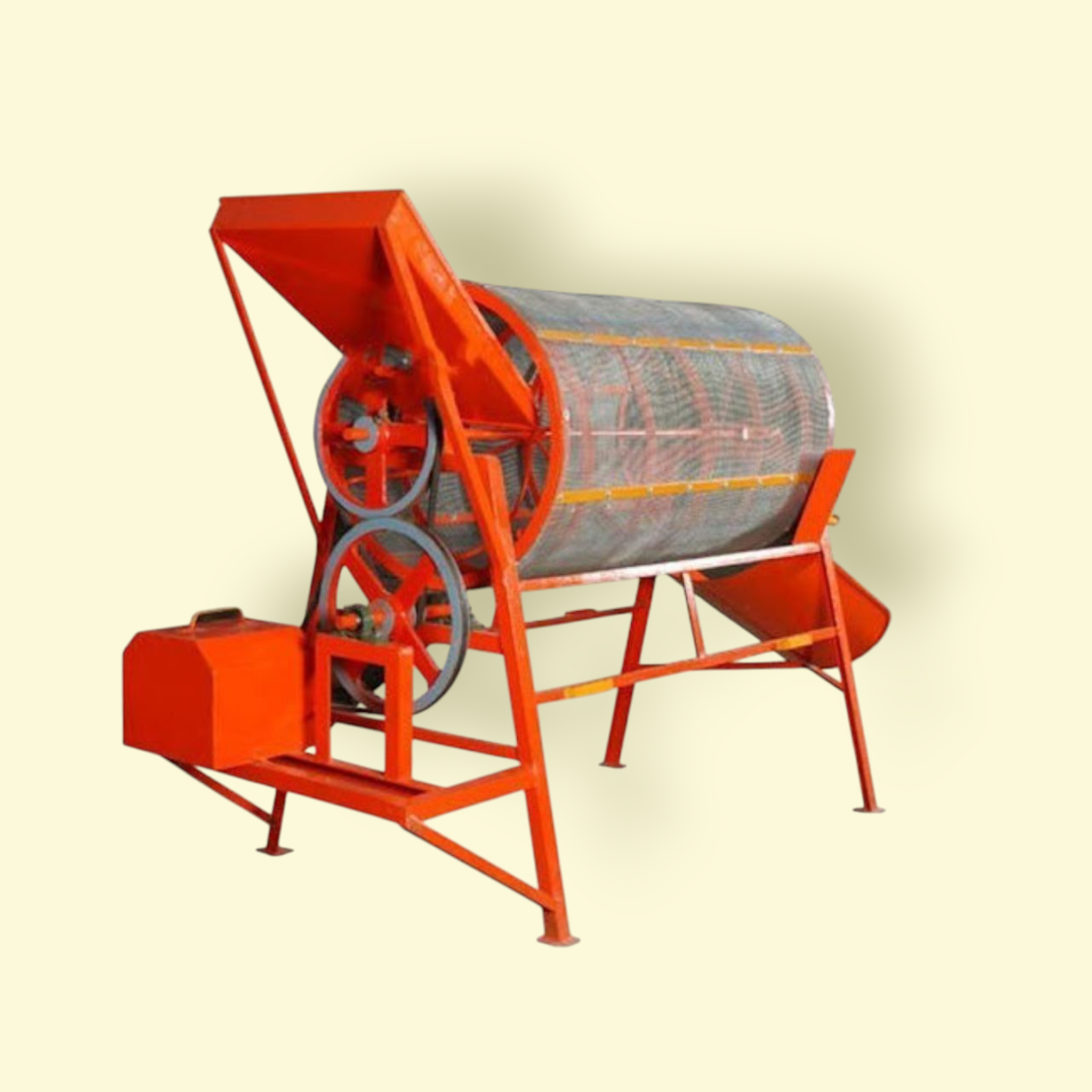

A Rotary Sand Screening Machine,(Rotary Sand Screening Machine: Manual and Motor-Powered, 20 m/min Capacity) also known as a Rotary Sand Sieve or Rotary Screening Drum, is a mechanical equipment used to separate fine sand, stones, pebbles, soil and unwanted materials from raw sand. The machine works on a rotating drum mechanism (Trommel type) where sand is fed into a cylindrical mesh. in the Rotary Sand Screening Machine drum rotates, fine particles pass through the mesh while larger materials are discharged separately.
This Rotary Sand Screening machine is widely used in construction sites, block industries, ready-mix plants, civil contractors, and material processing units.
Its design ensures high output, low maintenance, smooth operation, and excellent screening efficiency.
manual sand sieve, hand operated sand Siever, construction sand screening, portable sand sifter
What is a sand sieving machine? What is the cost of sand sieving machine?, What is a sand sieve used for?
sand sieving machine price, sand sieving machine Coimbatore, sand sieving machine design, sand sieving machine motor, rotary sieving machine
✅ Technical Specification (Standard Model)
| Parameter | Specification |
|---|---|
| Machine Type | Rotary / Trommel Sand Screening Machine |
| Drum Diameter | 600 mm – 1200 mm (custom available) |
| Drum Length | 1500 mm – 2500 mm |
| Screen Mesh Size | 3 mm, 5 mm, 10 mm, or as per requirement |
| Output Capacity | 3–6 Ton/Hr (model dependent) |
| Motor Power | 1 HP to 3 HP (Single/Three Phase) |
| Drive Type | Gearbox & chain drive / belt drive |
| Material Feeding System | Manual or Hopper feeding |
| Machine Frame Material | Heavy-duty MS pipe & angle structure |
| Drum Material | MS perforated sheet with reinforced rings |
| Rotation Speed | 18–28 RPM |
| Power Requirement | 220V/440V |
| Mobility | With or without wheels |
| Applications | Sand screening, soil cleaning, construction sand separation, stone removal |
✅ Common Questions & Answers (FAQ)
1. What is a Rotary Sand Screening Machine?
A machine that uses a rotating drum to separate fine sand from stones, dust, and waste materials.
2. What mesh sizes are available?
Common mesh sizes: 3 mm, 5 mm, 10 mm, 15 mm, and fully customizable.
3. What is the output capacity?
Depending on the model, it ranges from 3 to 6 tons per hour.
4. Which motor is used in the machine?
A 1–3 HP single-phase or three-phase induction motor depending on model size.
5. Is the machine portable?
Yes, models are available with heavy-duty wheels for easy movement on construction sites.
6. What materials can it screen?
-
River sand
-
Crushed sand
-
Soil
-
Gravel and small stones
-
Compost and organic material
7. What is the machine made of?
Made of MS angle frame and MS perforated cylindrical drum for long durability.
8. Can I customize the size and capacity?
Yes, drum size, mesh size, motor power, and frame design can be fully customized.
9. What is the maintenance required?
Only routine checks like:
-
Lubricating bearings
-
Tightening chain/belt
-
Cleaning drum mesh
10. What is the price range?
Depending on size and features, the price starts from ₹28,000 to ₹95,000+.
